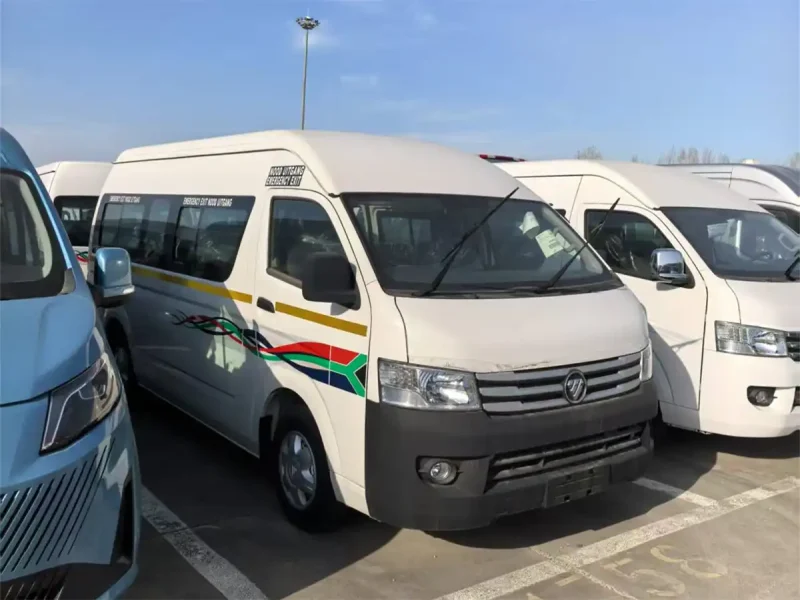

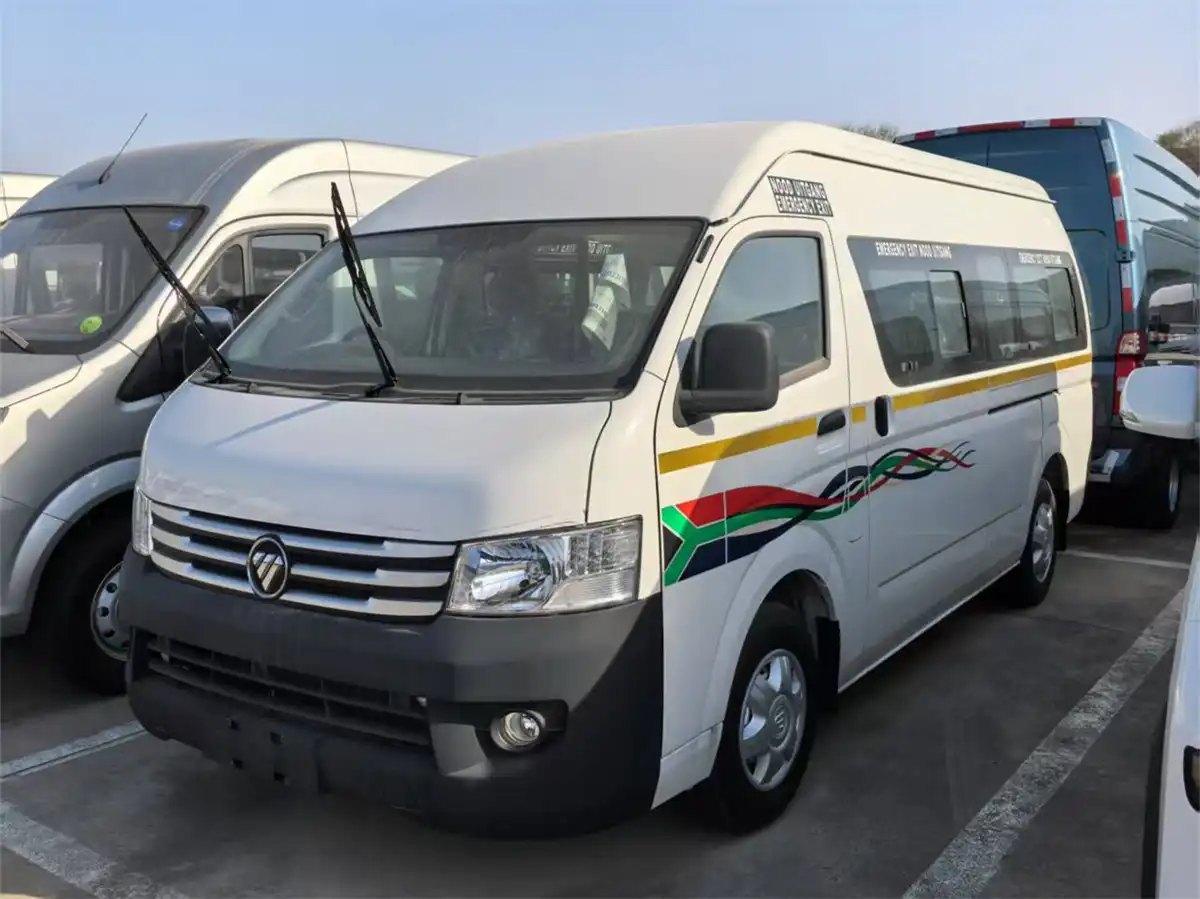

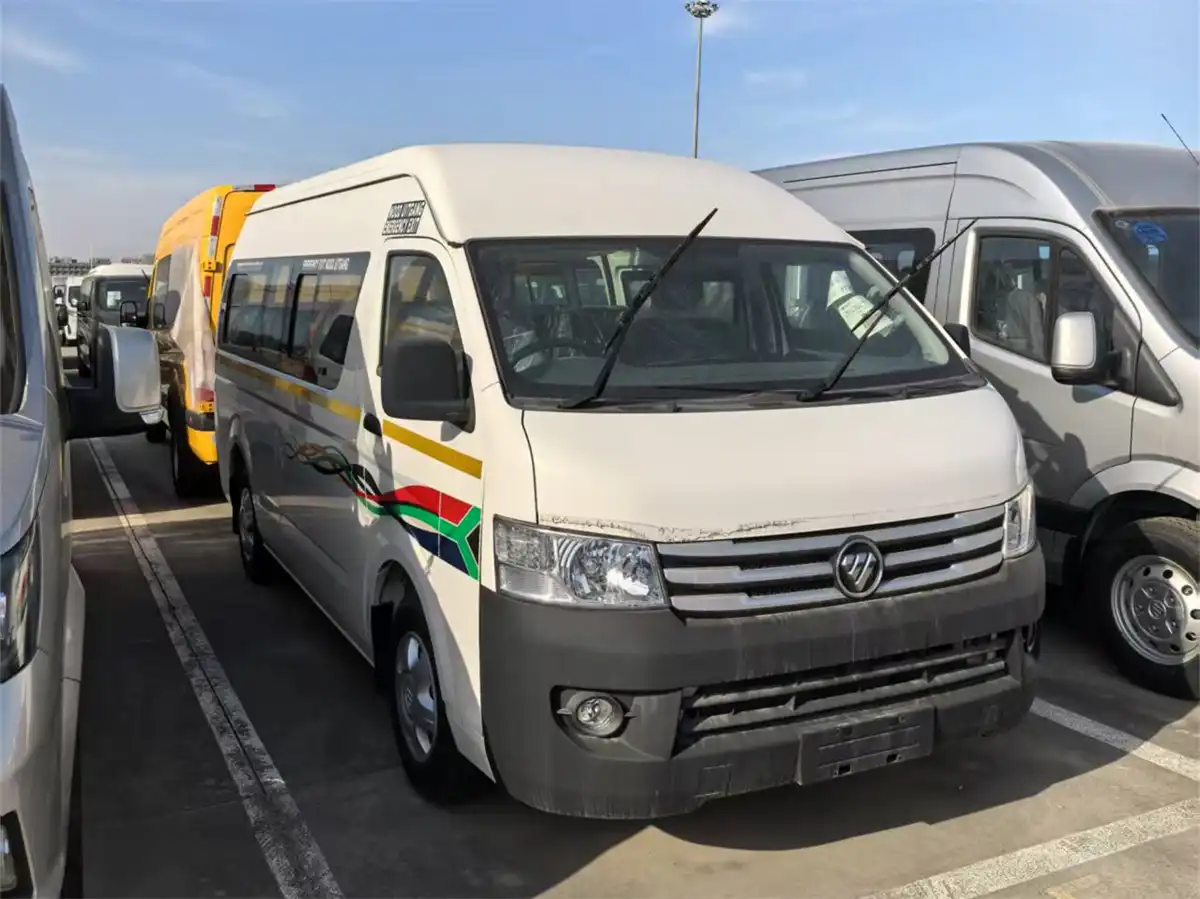

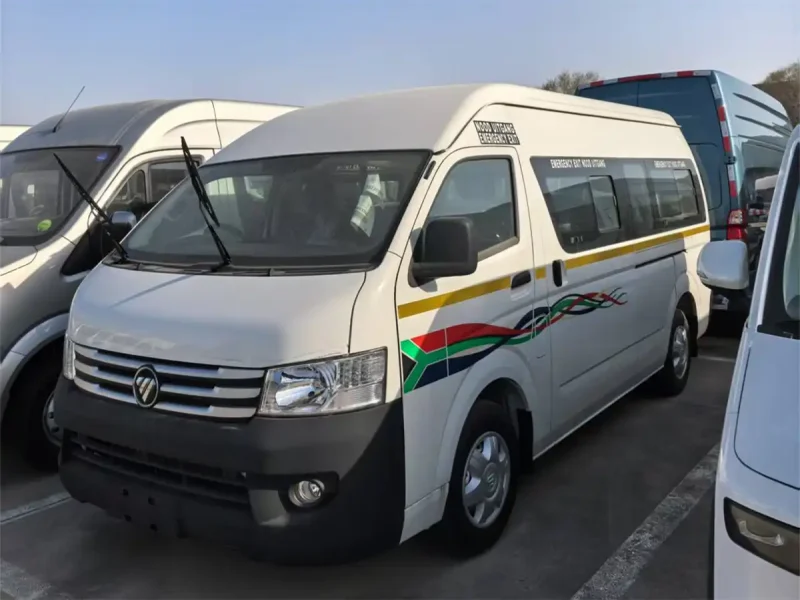

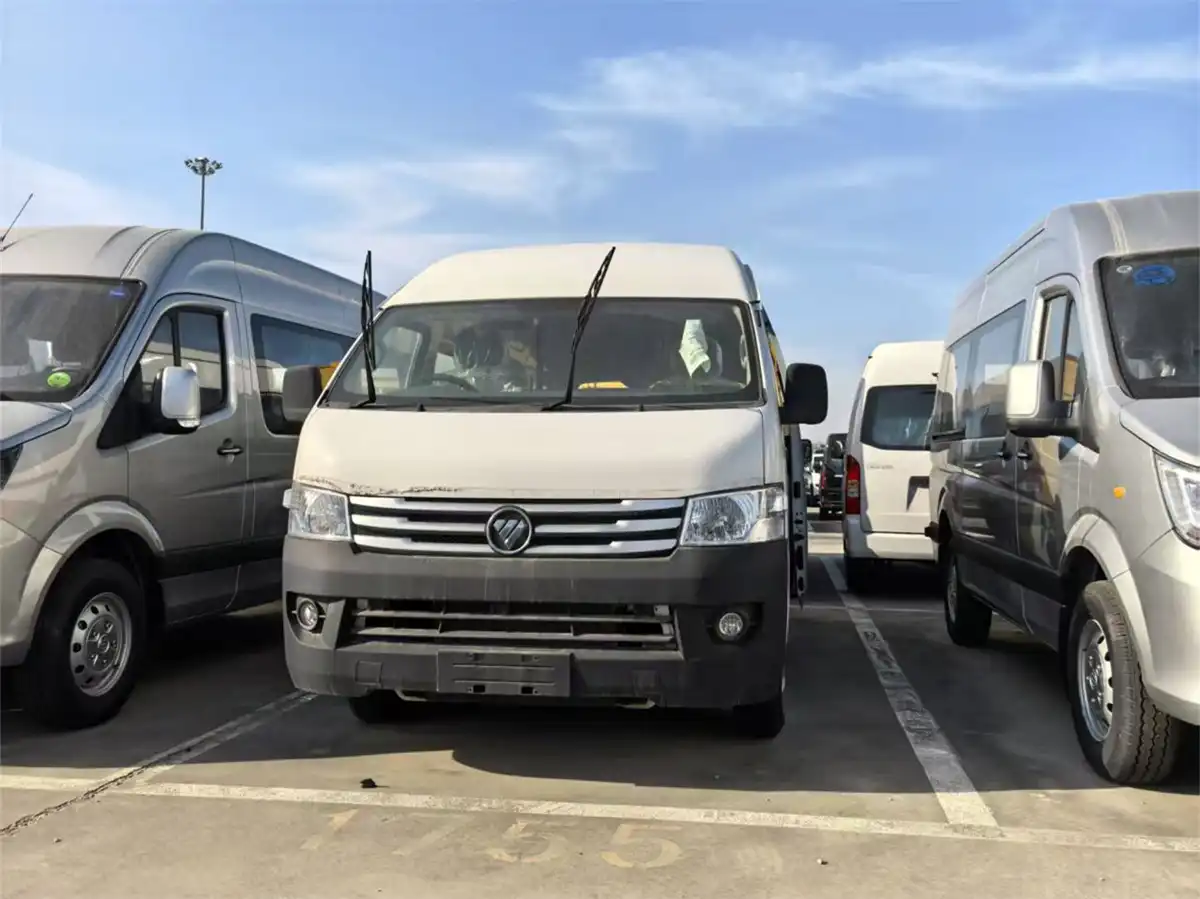

FOTON VAN
FOTON VAN
FOTON VAN
- Overall (Chassis) Dimensions: 5380 x 1920 x 2285
- Curb Weight: 2160
- Gross Vehicle Weight (GVW): 3400
- Body Width: 1920
- Roof Height: High Roof
- Steering Position: Right-Hand Drive
- Cab Configuration: Semi-Cab
- Seating Capacity (Number of Passengers): 16
- Fuel Type: Gasoline
- Engine/Motor Model:
- Engine Manufacturer / Battery Manufacturer: Shenyang Aerospace Mitsubishi
- Displacement (cc) / Battery Capacity (kWh): 2378
- Emission Standard: Euro IV
- Power/Speed (kW/rpm): 100
- Engine Torque (Nm/rpm): 200
- Transmission Model: ZM001AD
- Transmission Type: 5MT (5-Speed Manual)
- Transmission Manufacturer: Zhongma
- Front Axle Load: /
- Center/Rear Axle Load: 1800
- Drive Axle Gear Ratio: 4.875
- Brake Type: Wheel-mounted hand brake
- Brake Configuration: Front Disc / Rear Drum
- Brake Control System: ABS + EBD
- Tire Model: 195R15C steel wheel with hubcap
- Number of Tires: 5
- Fuel Tank Capacity: 65L
- Suspension Type: Front – Double wishbone torsion bar independent suspension; Rear – Steel leaf spring non-independent suspension
- Leaf Spring Configuration (Rear): 3+1
- Climate Control System: Front heater without air conditioning / Electric air conditioning
- Basic Equipment (Entertainment System): Radio
- Bumpers: Body-color front and rear bumpers
- Radar: No reversing radar / No front collision radar
- Standard Body Package (Seats, Doors, Windows, Mirrors): Manual windows with mechanical locks; manually adjustable, non-defrost, manually folding mirrors without turn signals; knit seats without headrests
